Cutter Bar

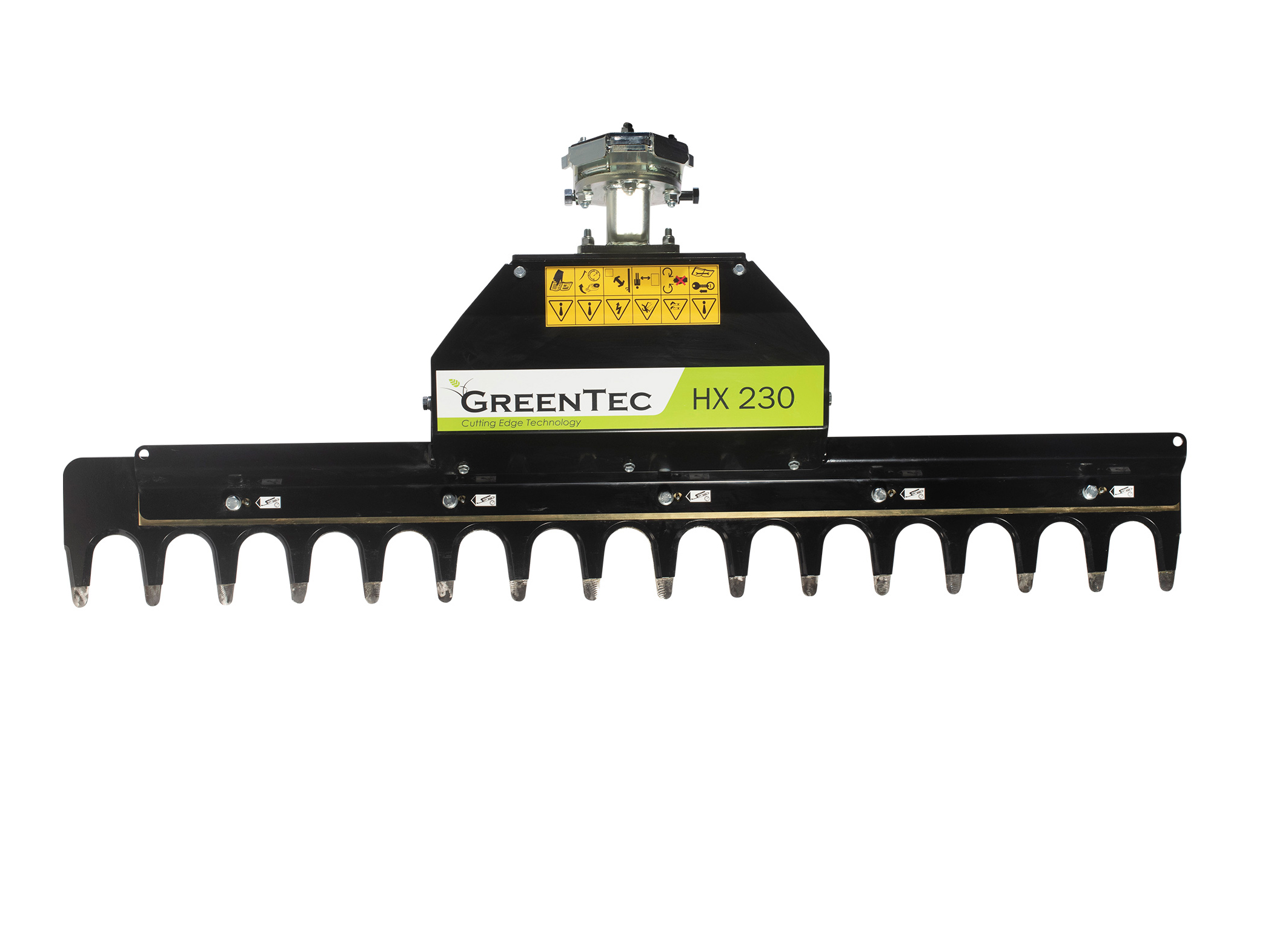

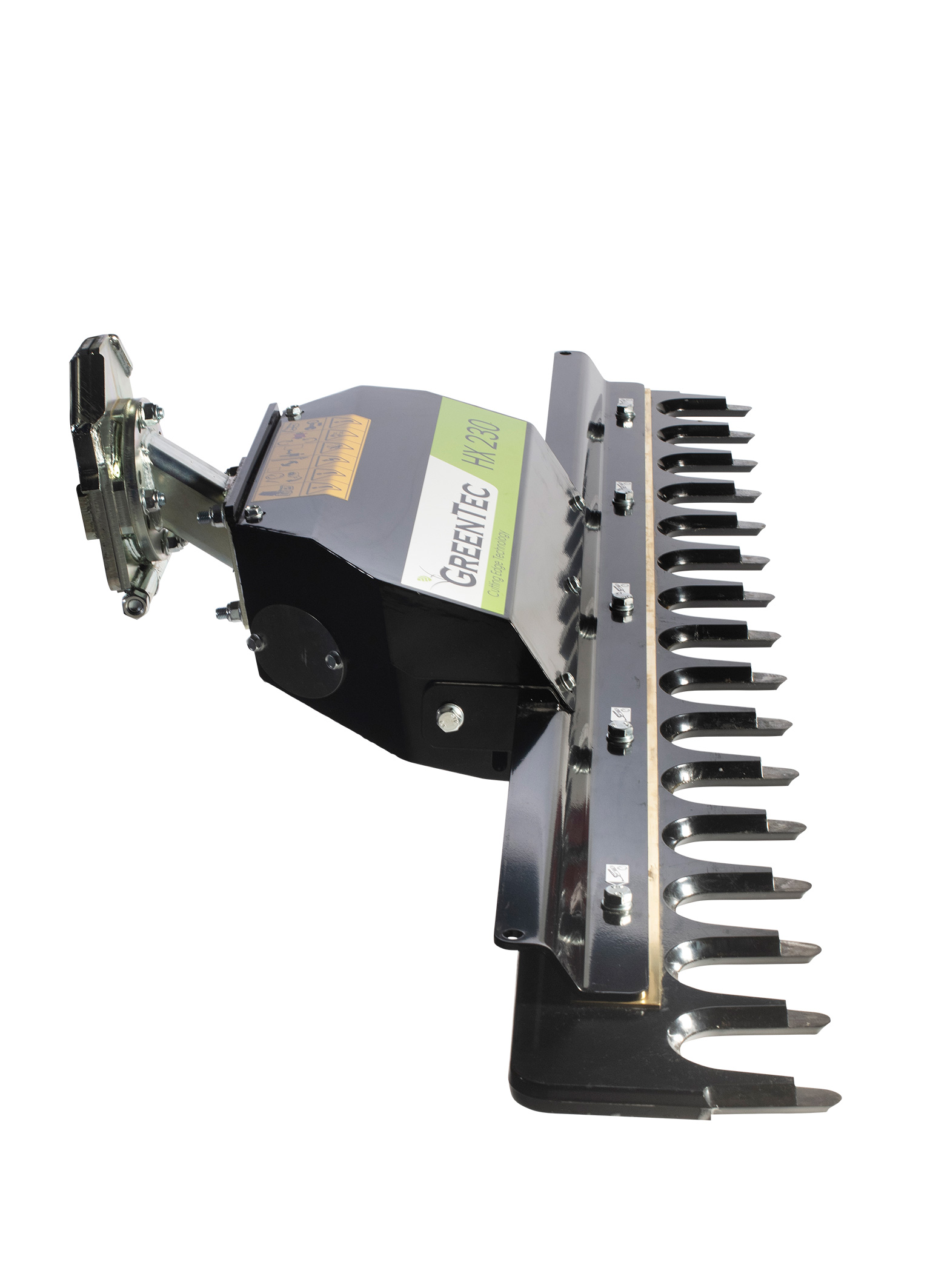

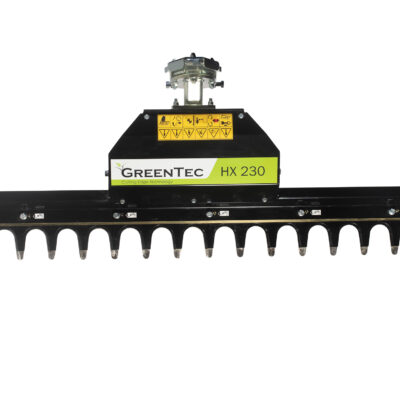

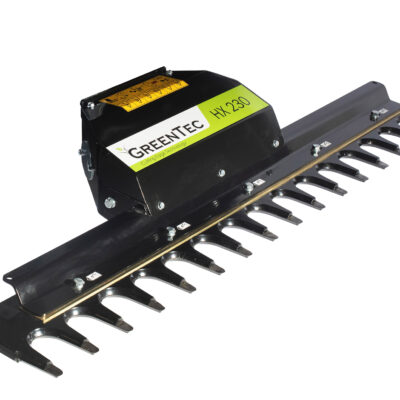

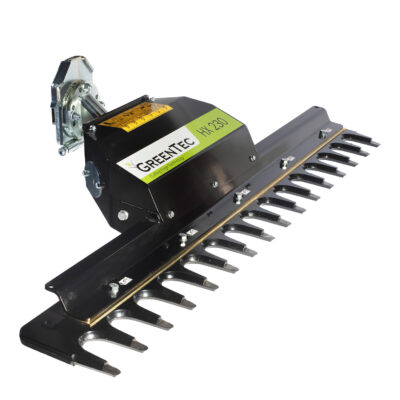

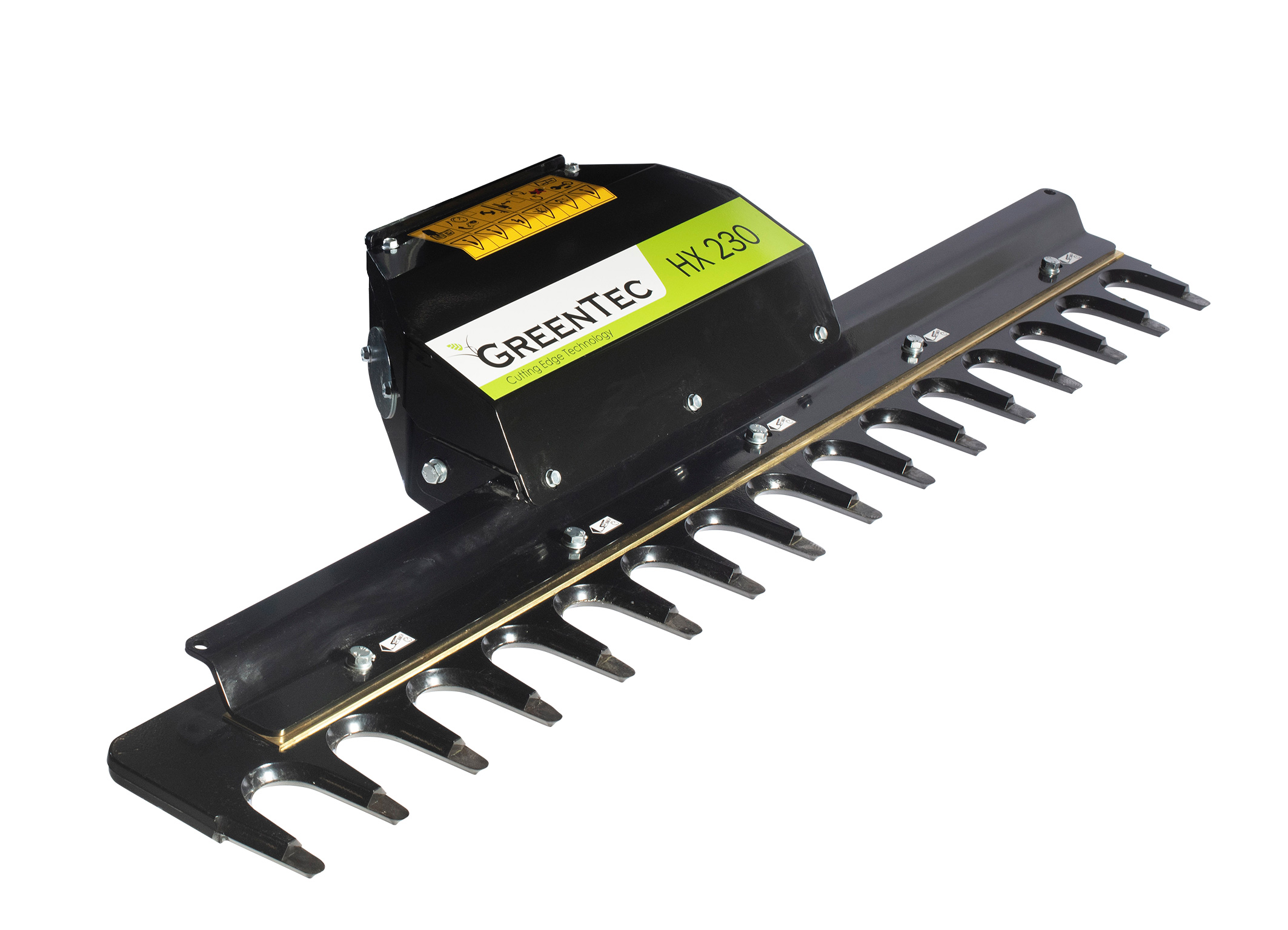

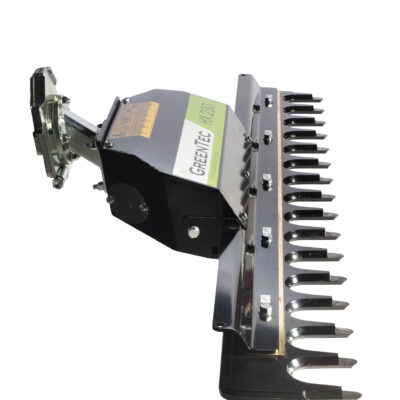

The GreenTec HX 230 is a powerful machine for tree trimming. The cutter bars have low maintenance costs as they are made in Hardox steel which is some of the most durable material on the market. You do not even need to sharpen the cutter bars as they will stay strong and cut branches with ease.

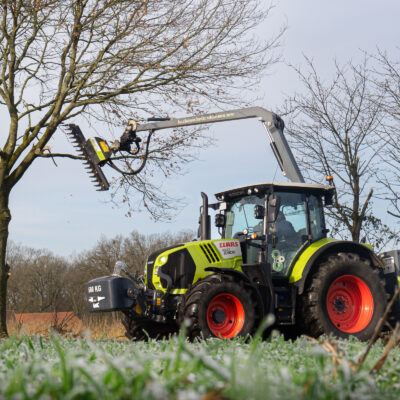

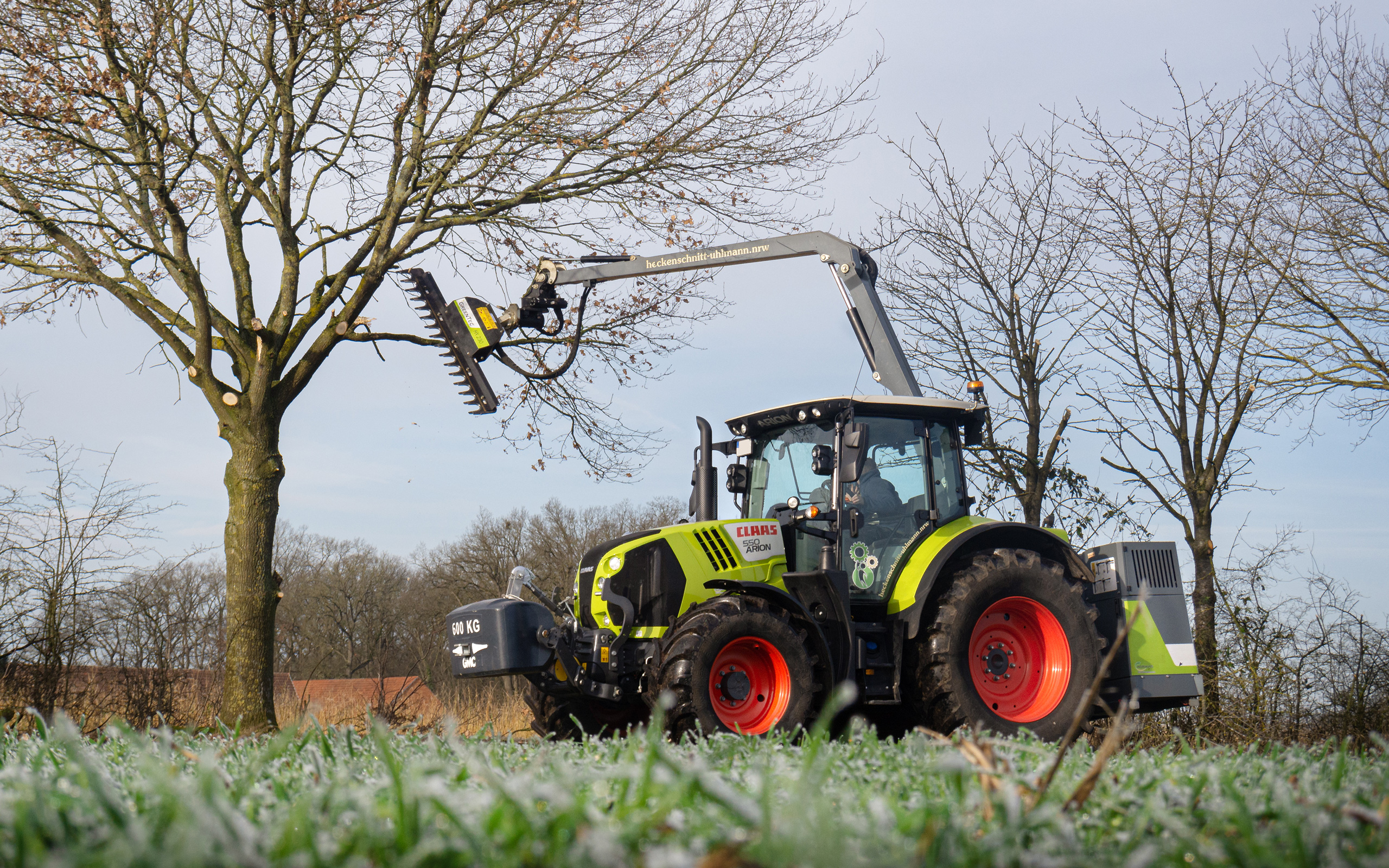

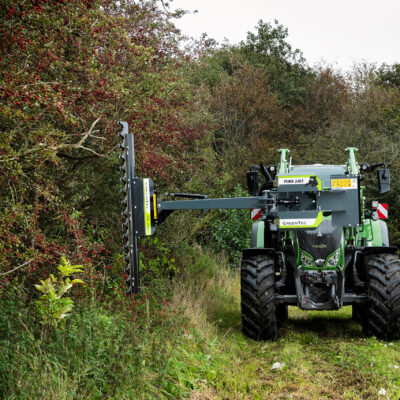

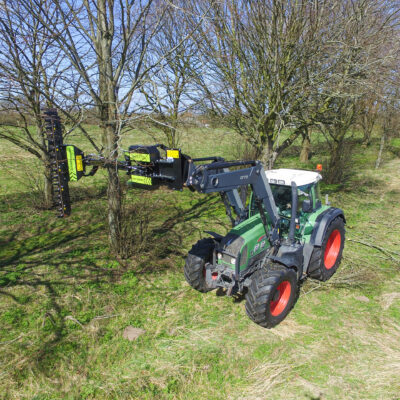

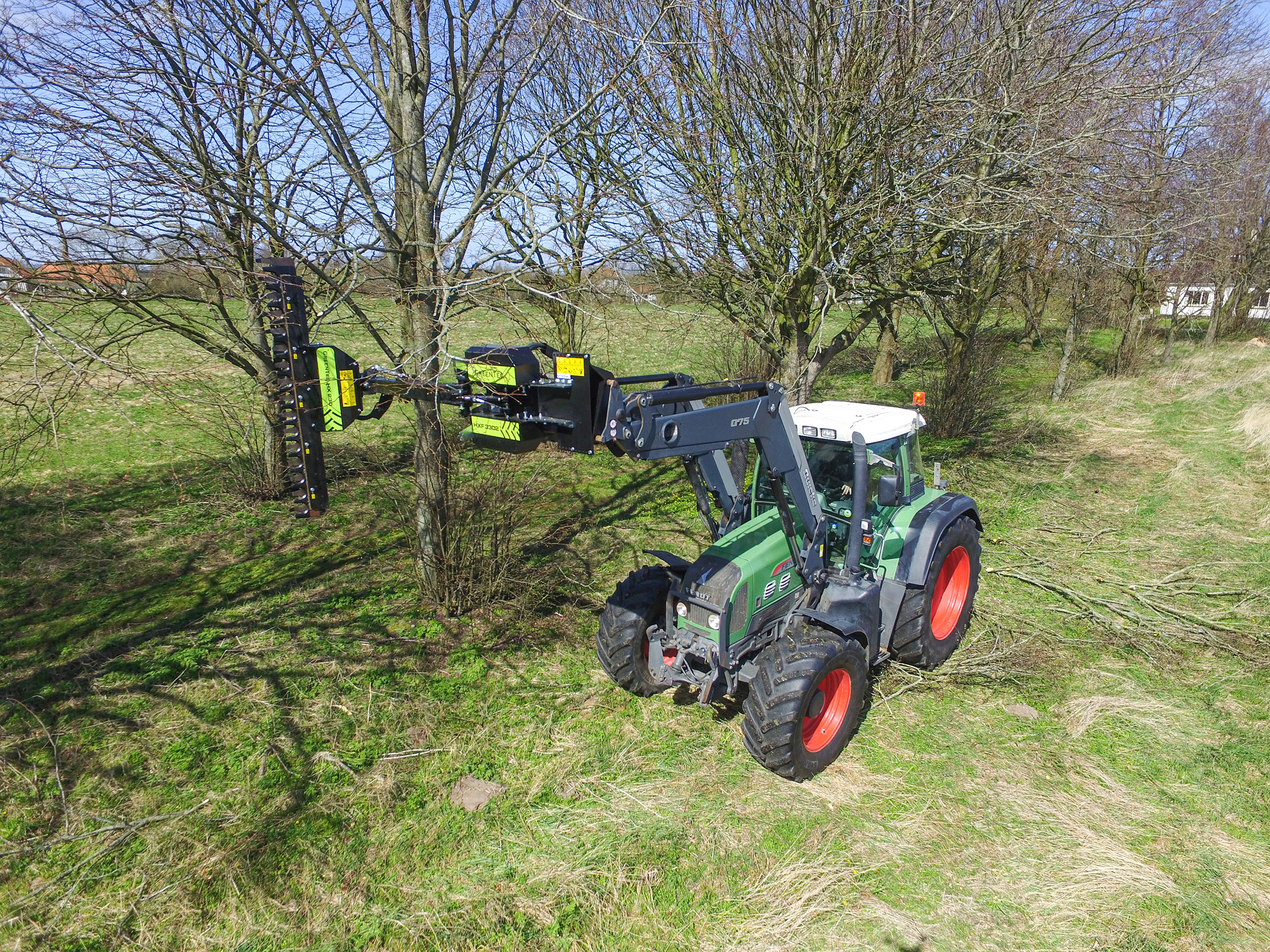

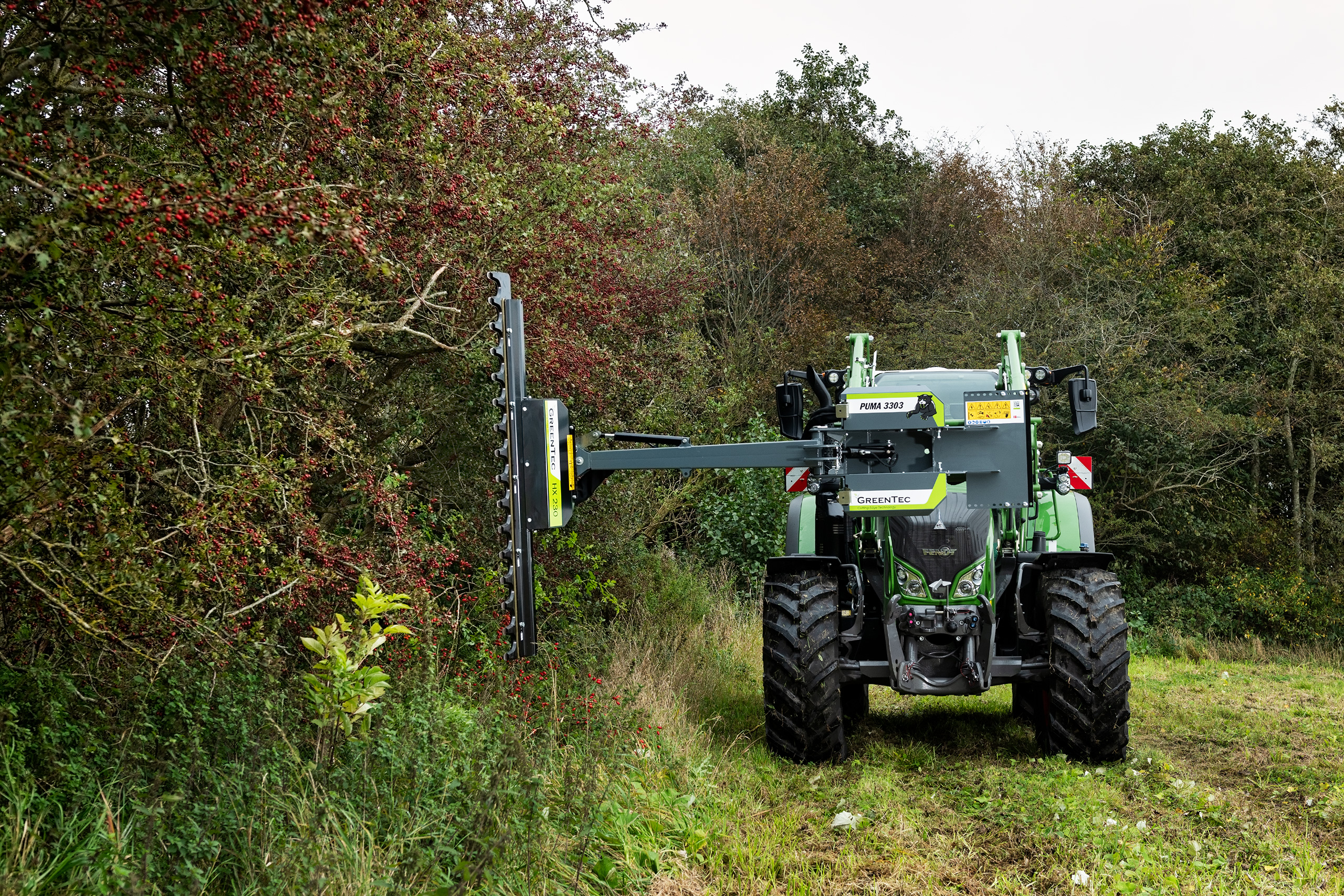

The HX 230 can be mounted on most large and medium-sized vehicles, such as tractors, loaders and excavators.

Product Features

  • Gearbox – Ensures high performance
  • Cutting system – 60 double strokes per minute
  • Accessibility – Change fingers with ease
  • Strong build – Long life and minimal maintenance
  • Brass sliders – Increase durability
  • Specially developed fingers – Made of Hardox steel for high strength
  • Center mounting – Optimal traction on the cutter bar

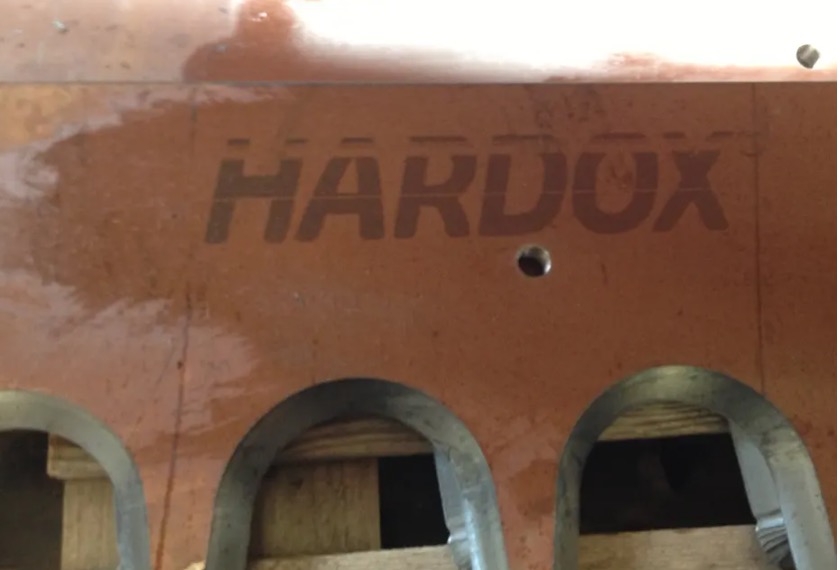

Specially developed fingers

Made of Hardox steel which ensure high power and long life

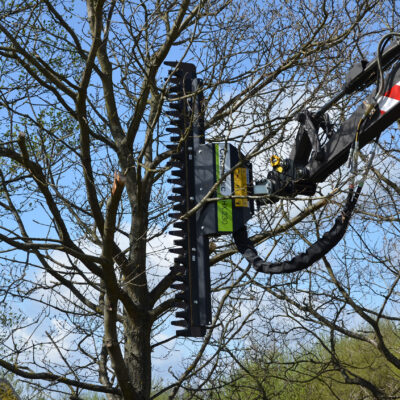

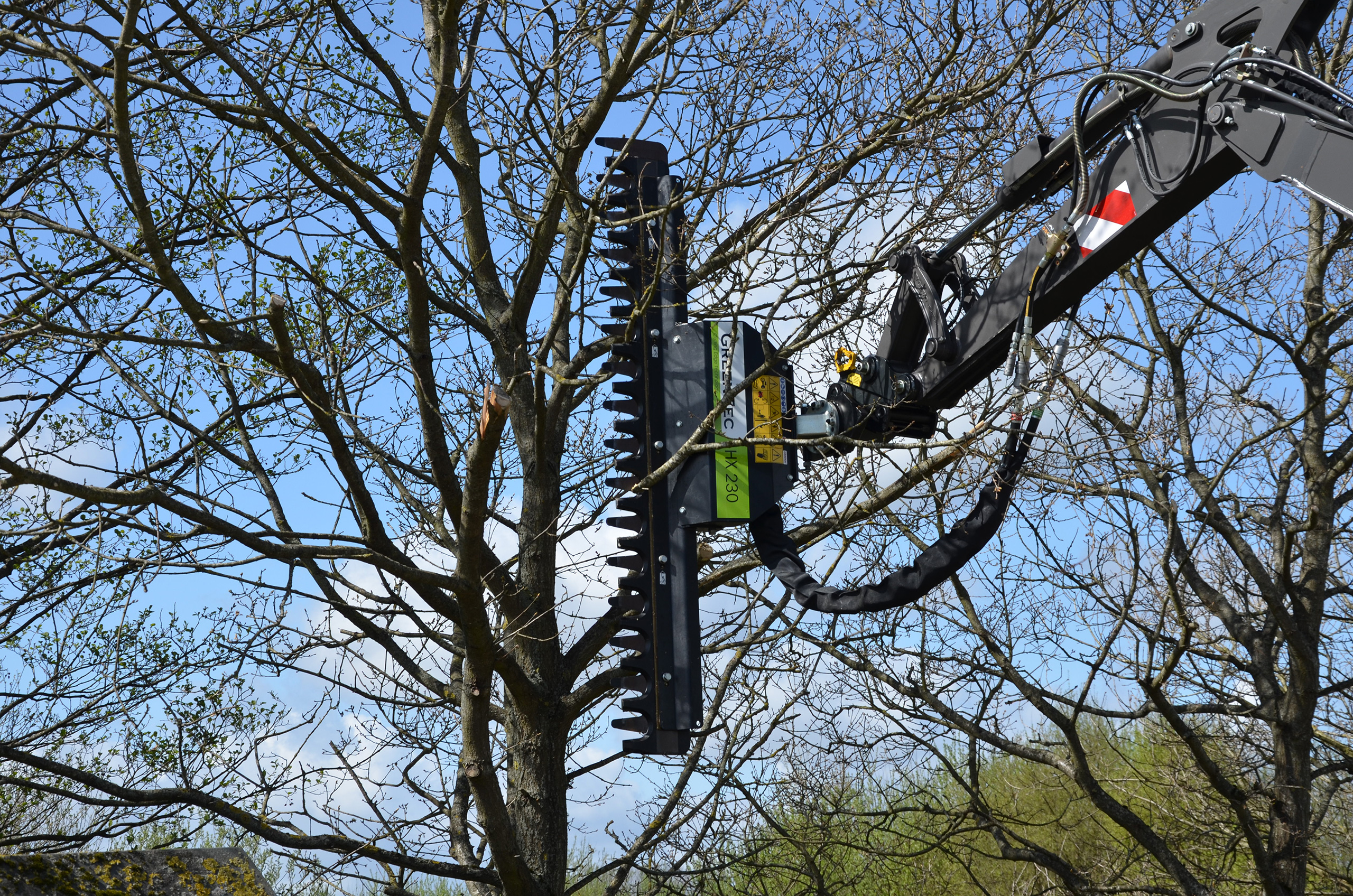

The HX230 is equipped with specially developed fingers that are made of Hardox steel. It increases the cutting power of the machine while lowering the costs for maintenance. You can use the HX 230 for both vertical and horizontal tree trimming due to the strength of the fingers.

Specifications

Cutter Bar HX 230
Working Width
2.3m
Branch Thickness
11cm
Driving Speed up to
2 km/hr
Blade Speed
3000-3200 rpm
Required Hydraulic Connections
1x double acting
Minimum Oil Flow, 28 ccm motor
50 l/min @ 150 bar
Weight
220 kg
High Performance Gearbox
Standard
60 Double Strokes per minute
Standard
Soft Turn Technique
Standard
Oil flow Divider
Standard
Trimmer Bars in Hardox
Standard
Pressure Relief Valve
Standard
Quick Release, Hydraulic
Optional
Quick Release, Mechanical
Optional

Other sizes available
